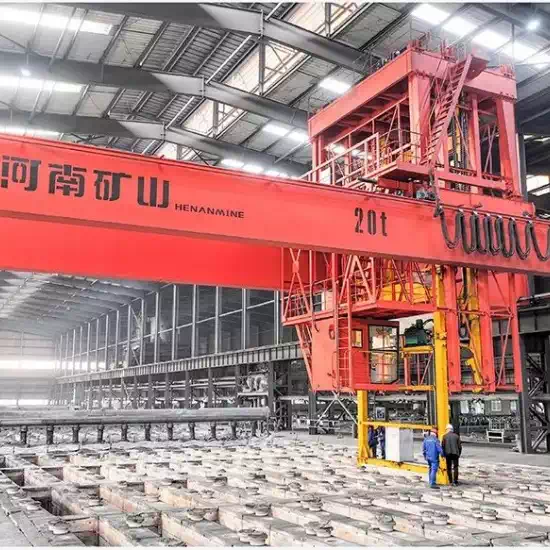

This crane is mainly composed of a bridge, Fixture lifting mechanism, opening and closing mechanism, electric hoist lifting and running agencies. It is equipped with closed-circuit monitoring, automatic detection, automatic positioning, automatically determine the fixture leakage, automatically determine the height of carbon block stacking and other functions.
Multi-Functional Baking Crane (Anode Stacking Crane) – Product Overview
Chapter 1: Lightweight Design, Reduced Construction Costs
Innovative Structure:
Box-type double girders + single trolley + dual spreaders for optimized weight distribution.
Integrated frequency conversion drive system (3-in-1 motor, brake, and gearbox) minimizes noise and vibration.
Smooth acceleration reduces mechanical shock on both the crane and workshop infrastructure.
Key Benefits:
✔ Lower structural load → Saves 15–20% in building steel costs.
✔ Energy-efficient operation → Cuts power consumption by 30%.
✔ Ideal for retrofitting existing facilities without heavy reinforcement.
Chapter 2: Precision & Intelligence
Dual-Spreader Technology:
Rigid guide columns + multi-track guide wheels ensure perfect vertical alignment.
High-strength wear-resistant rails extend service life in heavy-load cycles.
Independent or synchronized operation of spreaders for flexible workflows.
Pressure Control System:
Constant pressure maintenance guarantees stable gripping force (±2% variance).
Adaptive load sensing prevents slippage of anode blocks (even at 500°C).
Automation Features:

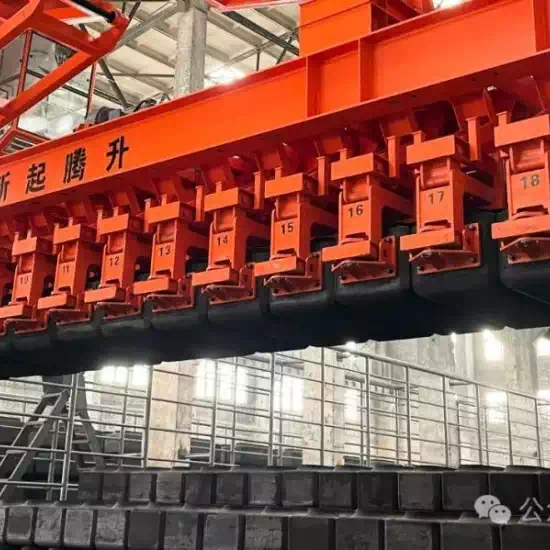

19-block gripping capacity per cycle (vertically arranged anodes).
One-step automation: Unloading → Stacking → Transfer to conveyor.
Chapter 3: High Protection & Environmental Adaptability
Robust Performance in Harsh Conditions:
Variable-frequency speed control (hoisting/traveling) for delicate handling.
Dedicated industrial AC unit protects electrical systems in:
High dust (e.g., carbon particle-filled workshops).
High temperature (up to 50°C ambient; 300°C near furnaces).
Fail-Safe Mechanisms:
Real-time fault alerts (overload, misalignment, temperature spikes).
Centralized control room with dustproof/heat-resistant cabinets.
Chapter 4: Comprehensive Safety & Reliability
Multi-Layer Protection:
Hoisting safety limit switches + emergency circuit breakers.
24/7 monitoring system (load cells, tilt sensors, brake wear detection).
Labor & Cost Savings:
Eliminates manual wire-rope lifting → Zero worker exposure to high-risk zones.
Reduces outsourcing costs by 40% (no need for third-party logistics).
Operational Simplicity:
Short training cycle (<8 hours for basic proficiency).
Automated stacking accuracy: ±5mm positional error.
