Multifunctional baking crane is a special crane for the process line that serves the anode carbon block roasting process, and is also a special operation equipment for the anode carbon block roaster.

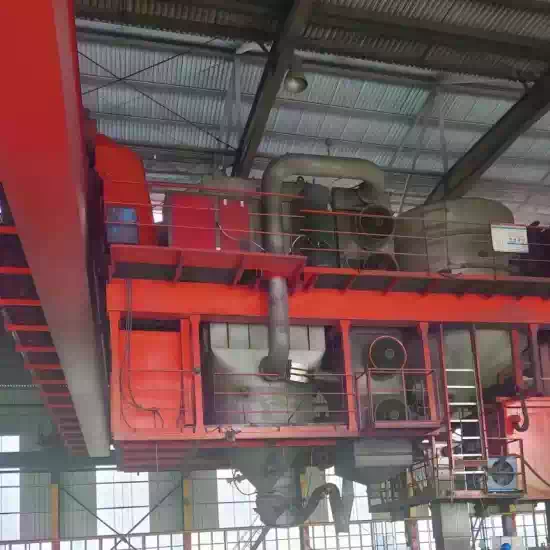

This crane is a multi-purpose bridge crane for anode baking in carbon plant, which is designed with suction system, dust purification system, anode carbon block clamp. It is a special equipment for the production of electrolytic aluminum anode carbon block.
The roasting multi-function crane refers to a dedicated crane with a vacuum material conveying system, a dust removal and cooling system, and an anode carbon block clamp device.

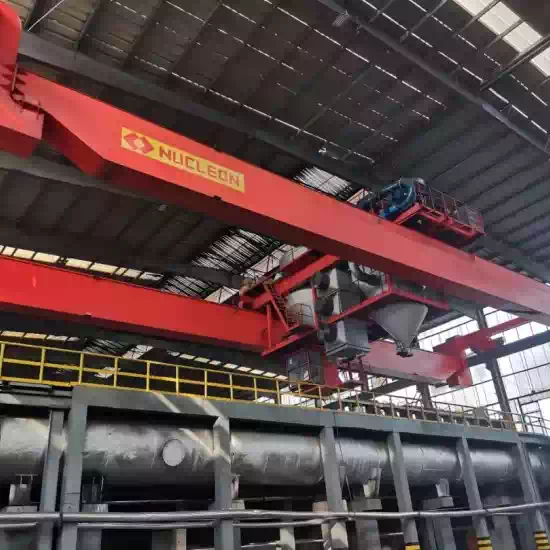

Anode Baking Furnace Multi-Functional Crane (FTM)
A specialized overhead crane for carbon anode handling in aluminum electrolysis production
1. Purpose & Key Technical Parameters
1.1 Functions:
Loading: Places raw (unbaked) anode blocks into baking furnace pits.
Filling: Distributes granular coke (0.8–5mm) into gaps between anodes and furnace walls, then covers the top layer.
Vacuum Extraction: Removes filler material from the furnace and transfers it to storage silos (capacity: 30/40/65 t/h).
Unloading: Extracts baked anodes ("finished blocks") and delivers them to conveyors or designated areas.
Auxiliary Lifting: Supports other workshop handling tasks.
1.2 Technical Specifications:
Anode Clamp Capacity: 2×6t (or equivalent to 14 anode blocks).
Filler Coke Conditions:
Granule size: 0.8–5mm
Temperature resistance: ~450°C (short-term 600°C).
Duty Class: A8 (suitable for continuous heavy-duty operation).
2. Product Structure
The FTM crane features modular designs, with variations primarily in the anode clamp mechanism (integrated on the tool trolley or standalone). Key components include:
Electrical drive & control system
Tool trolley (modular layout for seamless operation)
Bridge girder (high-strength Q355B steel, compact design)
Crane travel mechanisms (3-in-1 geared motors, high-load wheels)
Hoist unit
3. Core Advantages
3.1 Compact & Robust
Space-saving structure with FEM-optimized steel framework.
Modular subsystems for easy maintenance.
3.2 Multi-Functional Systems
Vacuum material handling (up to 80 m³/h with reinforced pipelines).
Cooling & dust control (multi-stage cyclone + bag filtration, emission ≤10mg/m³).
Anode block transfer & positioning.
Furnace equipment relocation.
3.3 Smart & Efficient
PLC-controlled automation (supports semi-/fully automated operation).
Variable frequency drives for smooth speed adjustment.
A7-A8 duty class for 24/7 performance.
3.4 Eco-Friendly & Safe
Dust-free operation with closed-loop material recycling.
Overload protection and fail-safe braking systems.
3.5 Customizable Designs
Trolley/lower girder下沉式 configurations to fit workshop layouts.
4-wheel per side travel system to reduce wheel load and building costs.
4. Target Industries
Aluminum smelting (primary application)
Carbon anode production
Metallurgical plants
Mining & raw material processing
